MCB & Isolators

RANGE

Rating: 0.5A ~ 125A, Poles: 1P, 1P+N, 2P, 3P, 3P+N, 4P
Rating: 0.5A ~ 63A (DC), Poles: 1P & 2P

ISOLATOR

Rating: 25A~125A
Rating: 1P, 2P, 3P & 4P

FEATURES

Tripping curves: B, C & D
Breaking Capacity 10kA
IP 20 degree protection
Trip Free mechanism with padlocking facility
Low Power Consumption
Current limiting design – class 3
Air Circulation

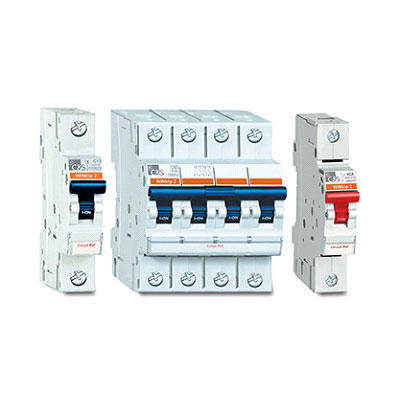

RANGE

Rating: 0.5A ~ 63A, Poles: 1P, 1P+N, 2P, 3P, 3P+N, 4P
Rating: 0.5A ~ 63A (DC), Poles: 1P & 2P

ISOLATOR

Rating: 25A~100A
Rating: 1P, 2P, 3P & 4P

Tripping curves: B, C & D
Breaking Capacity 10kA
IP 20 degree protection
Trip Free mechanism with padlocking facility
Low Power Consumption
Current limiting design – class 3
Air Circulation

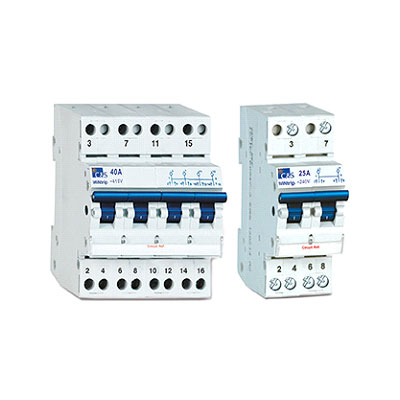

RANGE

Rating: 25A, 40A & 63A
Poles: 2P & 4P

FEATURES

Compact design
Double break contacts
Shrouded terminals
Can be mounted with other products like MCB, RCCB, Isolator in Distribution Board
Front operation with three positions I-O-II mid position OFF

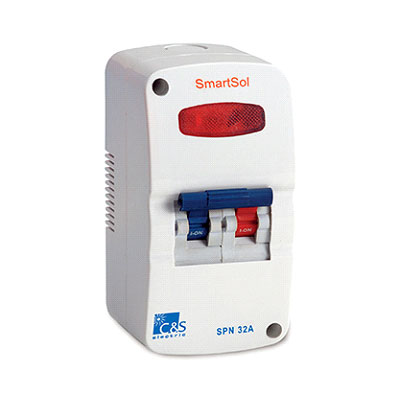

RANGE

Range: 6A~32A
Poles: 1P+N, 2P

FEATURES

Compact and space saving design
Overload & short circuit protection
Rapid closing mechanism
Easy to operate & replace
Brass terminals in both side
Supply Indication
