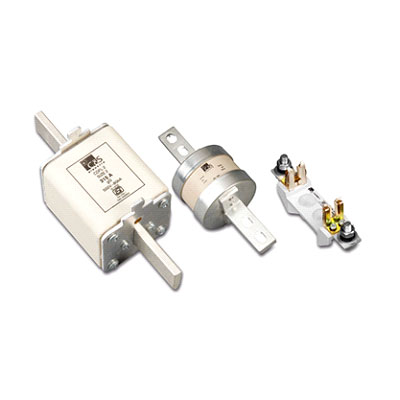

Fuse & Fuse Bases

RANGE

Fuse Link-DIN / Fuse Base : Size 0: 2 to160A / 160A , Size1: 32 to 250A / 250A , Size2: 100 to 400A / 400A , Size3: 315 to 630A / 630A
Fuse Link-BS: 2 to 800A; OFF set tag & central tag type
Fuse Holder: Available for 20A, 32A, 63A & 100A

FEATURES

Short circuit capacity at >80 kA, 415/500V AC 50 Hz
Positive indication of the operation with red colour pop.
Low power loss not only saves energy but also ensures cool running and longer life of equipment.
Low cut-off current reduces electromagnetic stresses and damage to circuit & equipment.
Low I2t let through energy reduces thermal stresses, fire risks and damage to the equipments.
Ideally suitable for back up protection to motor starters against short circuit faults.

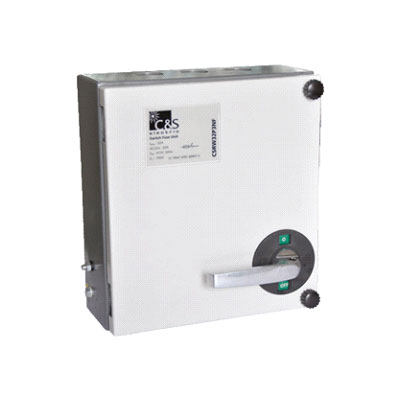

Switch Fuse Unit : Rewirable, utilisation category AC-22A

FEATURES

Front / side handle operation
Suitable for surface mounting
Enclosed fabricated steel sheet with phosphate coating by seven tank system
Powder coated to give lasting surface protection
Provided with adequate Knock Outs for cable entry and inner mounting holes for easy installation
The Fixed contacts are provided with removable shield
