Rating: 9A~2100A
Poles: 3 & 4 Pole, control relays
Rating: 0.1A~ 1000A
Superior functional aesthetics and advanced performance
Common add-on accessories – front / side auxiliary contact block, pneumatic timer block, mechanical interlock & coil suppressor
Overload relays auto / manual reset with built-in single phase protection
High mechanical life achieved by optimum design and world class material

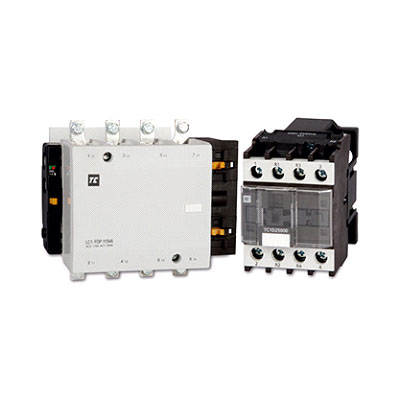

Robusta contactors have been engineered for superior performance under Hazardous Indian tropical conditions, conforming to IS/IEC 60947-4-1; IS/IEC 60947-1. It’s robust construction with heavy duty silver alloy contacts, encapsulated coil in higher range to withstand wide voltage fluctuations delivers long life. Contactor have high insulation strength, with high making and breaking capacity.
Extremely easy maintenance
Easy coil replacement
Low down time for Contactor maintenance
Contactor is ideally suitable for standalone applications such as welding, compressor, motor control & machine tools etc
Rating: 7A~38A, AC3
Poles: 3 Pole AC, 45mm width
In- built NO+1 NC aucxillary contacts
Common add-on accessories-front / side auxillary contact block, pneumatic timer block, mechanical interlock & coil suppressor
Easy coil replacement
Snap fit design
High mechanical & electrical endurance

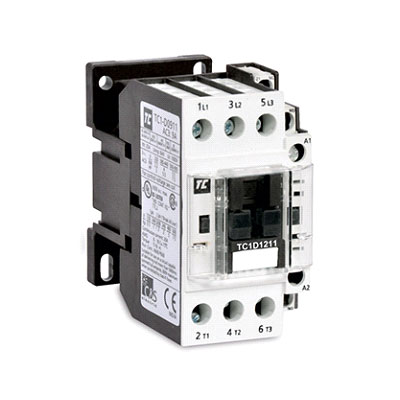

Robusta2 contactors meeting complex requirements of electrical systems of today and tomorrow ensuring reliability which can offer uninterrupted service throughout the product life undergoing all the stresses that system encounters. C&S now offers total solution for modern day requirement for measurement, analysis and communications, all in optimized size. Compact yet offering various connections for ease of installation snap on site fit accessories, enhanced life and intuitive operation makes them a very user friendly .
Affords extremely easy maintenance
Easy coil replacement
Contactor maintenance requires low down time
Contactor is ideally suitable for standalone applications such as welding, compressor & pump control etc
20A, 25A & 40A, AC3
Snap fit top mounted auxiliary contact 2NO, 2NC, 1NO + 1NC
Extra thick inter phase barrier assures long trouble free life
High mechanical & electrical life
Coils suitable for wide band operating range
Din-rail or direct mounting options

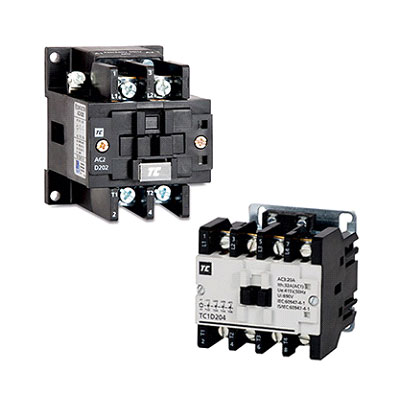

C&S Electric 2 Pole Contactor type AC2D common frame size, has been designed for single phase power control applications. 2 Pole & 4 Pole Contactors have heavy duty silver alloy contacts, extra thick inter-phase barriers, large terminal area, electromagnet for low voltage pick-up, to suite rugged Indian field conditions ensuring long trouble free service. C&S 2 Pole & 4 Pole Contactor conforms to IS/IEC 60947-1, IS / IEC 60947-4-1.
These Contactors have heavy duty silver alloy contacts
Extra thick inter-phase barriers
Moving contact can be inspected / replaced, if required, easily
Large terminal area
Electromagnet for low voltage pick-up
Suite rugged Indian field conditions ensuring long trouble free service
Available in wide range of coils
Rating: contactor : 9A~80A,
Rating: overload relay : 0.1~66A
Poles: 3 Pole, AC
Modular design for flexibility in cost effective solutions
Saves inventory cost-common add-on accessories
High mechanical and electrical life

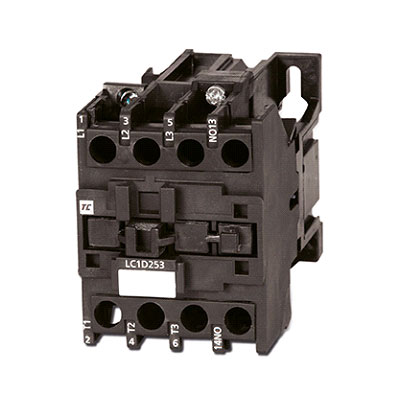

D-Range contactor has been engineered for superior performance under Hazardous Indian tropical conditions, conforming to IS/IEC 60947-4-1, IS/IEC 60947-1.It’s sturdy proven construction with heavy duty silver alloy contacts, H class enamelled copper wire’s coil to withstand wide voltage fluctuations delivers long life.
Affords extremely easy maintenance
Easy coil replacement
Contactor maintenance requires low down time
Contactor is ideally suitable for standalone applications such as welding, compressor & pump control etc
Rating: 6A~125A, AC/DC
Poles: 3 & 4 Pole
Modular design for flexibility in cost effective solutions
Saves inventory cost-common add-on accessories
High mechanical and electrical life

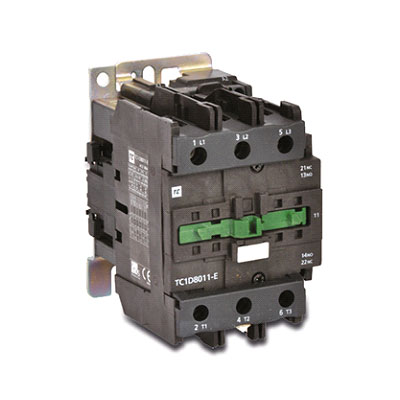

Exceed contactor has been engineered for superior performance under Hazardous Indian tropical conditions, conforming to IS/IEC 60947-4-1:IS/IEC 60947-1. Exceed contactors have silver alloy contacts, H Class enamelled copper wire & encapsulated coil(in high rating) to withstand wide voltage fluctuations delivers long life.
Affords extremely easy maintenance
Easy coil replacement
Contactor maintenance requires low down time
Contactor is ideally suitable for standalone applications such as welding, compressor & pump control etc
Rating: 7kVAR ~ 75kVAR
Poles: 3 Pole, 415V AC, 50/60 Hz
Excellent damping of In-rush current
Reduced watt loss during “ON” condition, saves energy
Capacitor bank switching in parallel without de-rating
Enhanced equipment life
Low maintenance down time
Power quality improvement
Optimized solution cost

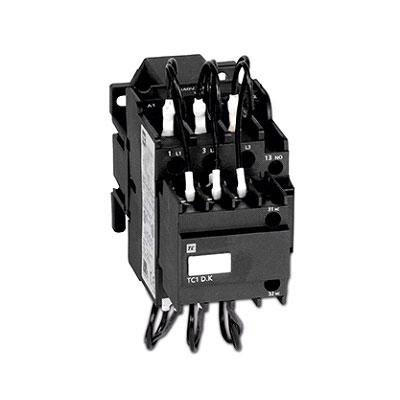

C&S ‘s range of capacitor duty Contactors is specially designed for capacitor switching applications. As capacitor switching is associated with high inrush current, the Contactors are provided with damping resistors which limit the value of inrush current to a safe value.
Excellent damping of In-rush Current
Reduced watt loss during ‘ON’ condition, saves energy
Capacitor Bank Switching in parallel without de-rating
Enhanced equipment life
Low maintenance & down -time
Power quality improvement
Optimized solution cost
